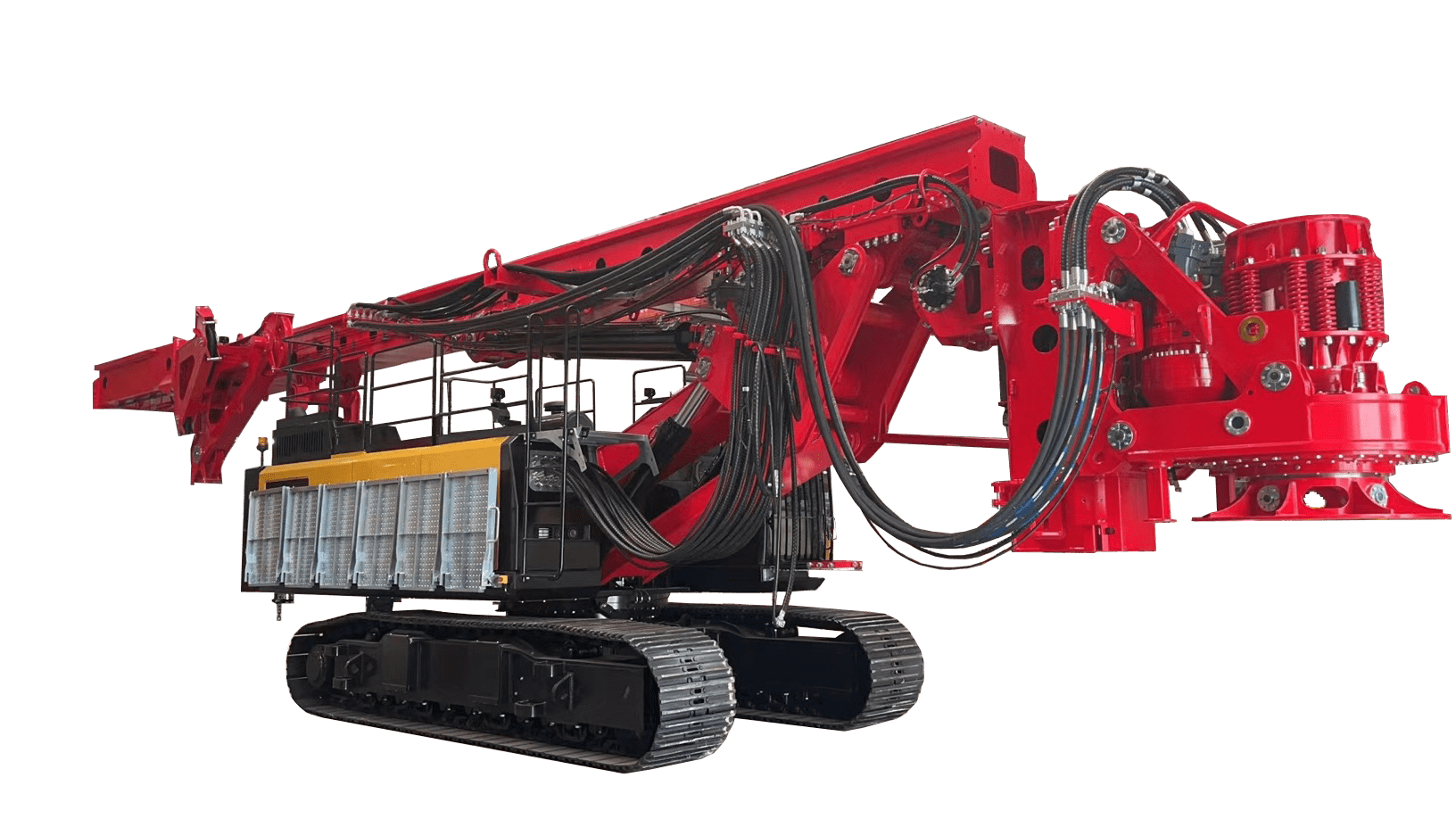

SR285MV

At 115.7 tons, the SANY SR285MV Drill Rig drills holes up to 7’2″ in diameter and 308′ deep with a friction kelly bar, or 200′ deep with an inter-locking kelly bar. Rated output torque is 210,205 lbf·ft from a 450 horsepower Cummins X12 engine, more than double the SR125MV’s 95,883 lbf·ft.

A multi-speed rotary adjusts to ground conditions and works well for rock drilling. The 56’1″ stroke, fast winches, and high speed spinoff get the rig back on the hole faster. A winch camera, blind side and backup cameras, cab protection screens, and swing alert lights cover site safety. The SR285MV ships on three trucks and typically assembles in under a day.

Every SANY SR285MV Drill Rig carries SANY’s 1 year, 2,000 hour warranty.

Features
• 7’2″ max drilling diameter
• 308’/200′ max drilling depth
• 210,205 lbf·ft rated output torque
• Multi-speed rotary adjustable to suit ground conditions, excelling at rock drilling
• Powerful Cummins X12 T4F
• 56′ extra-long stroke, featuring fast winches
• Real-time display of the location of the kelly bar locks when using the inter-lock kelly bar

The SANY SR285MV Drill Rig is available for a walkthrough at SANY of Tulsa ahead of any purchase.

Contact us for rates and availability to rent, lease or buy.
