SY265C

Medium Excavator

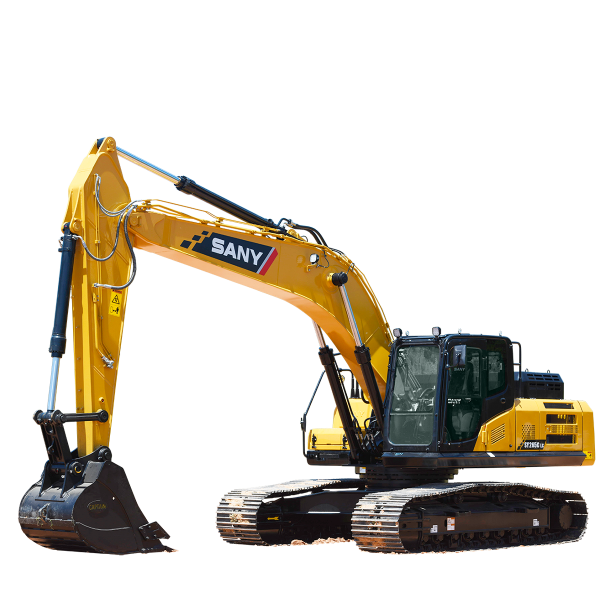

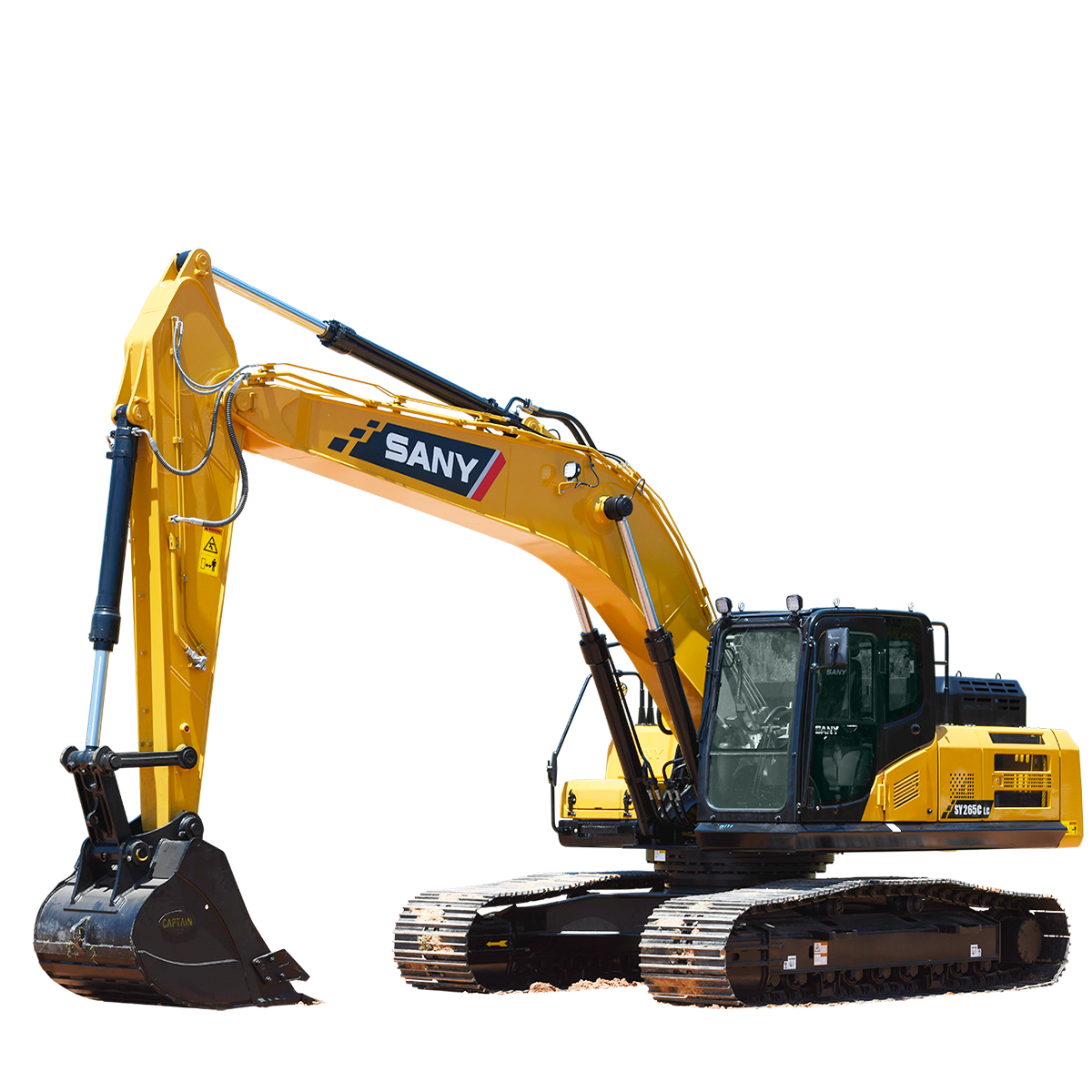

The SANY SY265C Medium Excavator reaches 22’0″ at 59,525 lbs and 194.4 horsepower, sized for mass excavation and mass grading on larger commercial and municipal projects where moving volume matters more than a few extra inches of depth. Selectable working modes let the operator match engine output to the task, running lean for grading passes and at full power for loading trucks.

The SY265C runs clean and quiet through sustained, high-load cycles thanks to a high-performance cooling system with electronic control fan clutch.

Every SANY SY265C Medium Excavator carries SANY’s 5 year, 5,000 hour warranty.

Features

• 22’0″ dig depth
• 59,525 lb operating weight
• 194.4 HP
• Powerful, robust and reliable powertrain and hydraulic components for long life in demanding applications
• Selectable working modes match machine performance to the application
• High-performance cooling system with electronic control fan clutch

The SANY SY265C Medium Excavator is available for a walkthrough at SANY of Tulsa ahead of any purchase.

Contact For More Info

Operating Weight

59,525 lbs

27,000 kg

Gross Power

194.4 hp

145 kW

Dig Depth

22' 0"

6,706 mm

Call for Pricing

Model	SY265C Medium
Boom Length	5,900 mm19' 4"
Stick (Arm) Length	––
Transport Length	10,290 mm33' 9"
Transport Width	3,390 mm11' 1"
Transport Height	3,255 mm10' 8"
Upper Structure Width	3,150 mm10' 4"
Cab Height	2,957 mm9'8"
Blade Height	––
Track Width (standard shoe)	800 mm31"
Track Gauge	2,590 mm8' 6"
Ground Clearance (minimum)	470 mm19"
Tail Swing Radius	3,105 mm10' 2"
Track Length on Ground	3,830 mm12' 7"
Track Length	4,636 mm15' 3"

Model	SY265C Medium
Operating Weight	27,000 kg59,525 lb
Ground Pressure	39.3 kPa5.7 psi
Engine	Cummins QSB 6.7T4F
Displacement	6.7 L408.9 in³
Gross Power	145 kW194.4 HP
Hydraulics	Positive Flow Control with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	520.0 L/min137.4 gal/min
Operating Pressure (maximum)	34.3 MPa4,975 psi
Power Boost Pressure (maximum)	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa4,975 psi
Travel Speeds (maximum)	3.5 / 5.5 km/hr2.2 / 3.4 mph
Travel Effort (maximum)	227.0 kN51,032 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	27.5 MPa3,989 psi
Swing Speed (maximum)	10.6 rpm
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	800 mm31"
Track Rollers (per side)	9
Carrier Rollers (per side)	2

Model	SY265C Medium
Boom Length	5,900 mm19' 4"
Stick (Arm) Length	2,950 mm9' 8"
Maximum Digging Height	9,740 mm31' 11"
Maximum Dumping Height	6,715 mm22' 0"
Maximum Digging Depth	6,706 mm22' 0"
Maximum Vertical Wall Digging Depth	5,675 mm18' 7"
Maximum Reach at Ground Level	10,225 mm33' 7"
Maximum Swing Radius	3,800 mm12' 6"
